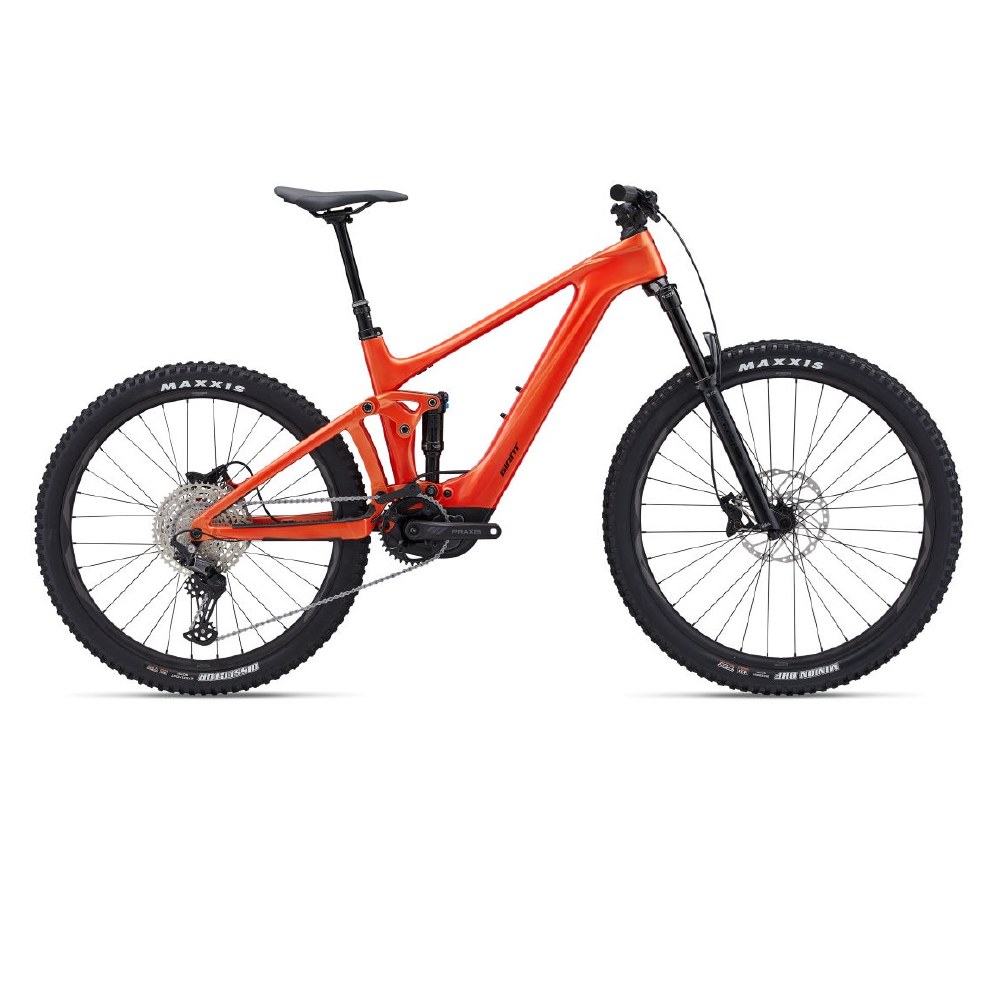

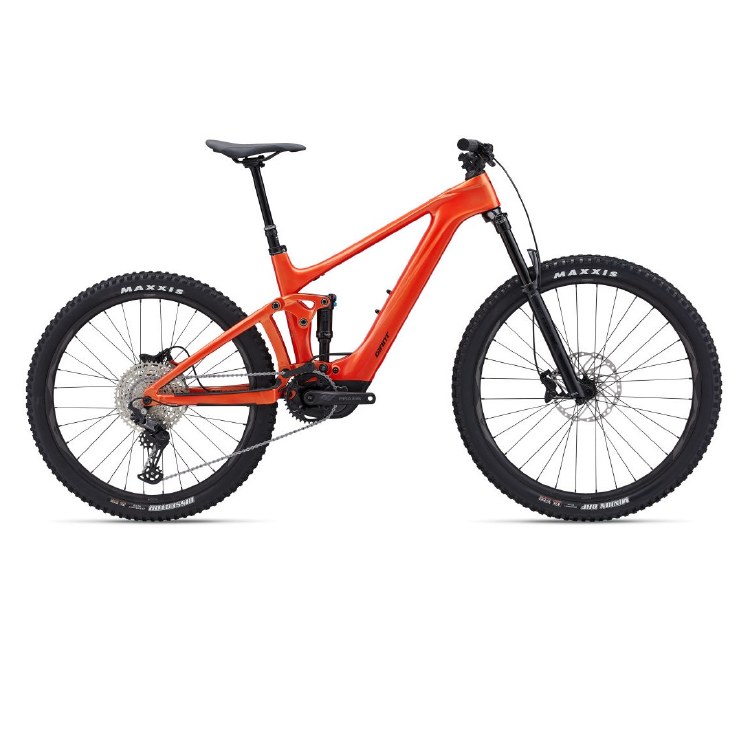

GIANT TRANCE X ADVANCED E+ ELITE 3

Accelerate up climbs, float through rock gardens, and experience more power, agility and control with this lightweight, full-suspension E-MTB. The ultra-slim battery minimizes weight so you can ride technical trails the way you always dreamed of.

Key Performance Factors

Lighter weight
EnergyPak 400 battery system is ultra slim, delivering all the power you need, but in a smaller package that’s cleanly integrated into the lightweight composite frameset.

Advanced cockpit control
RideControl Ergo 3 remote attaches to the composite Giant Contact SLR integrated handlebar. The control can be mounted to either side of the handlebar so you can customize your controls for a clean, uncluttered cockpit.

More power
New SyncDrive Pro Magnesium motor features a magnesium casing that reduces weight by 50g. It weighs just 2.5kg and delivers 85Nm of torque while retaining the instant engagement that characterizes SyncDrive Pro motors. It’s also engineered for a reduced noise level and quiet performance.

Range
How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

SPECIFICATIONS

Motor: Giant SyncDrive Pro2 Mg, 85Nm, PedalPlus 6-Sensor technology
Controller: Giant RideControl Ergo3, grip integrated remote
Display: Giant RideControl GO, frame integrated LED consoleOptional wireless ANT+ display
Battery: Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible

Frame: Advanced-grade composite frame, Aluxx SL-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
Fork: Marzocchi Bomber Z2 E-Tuned, 29er, 150mm travel, 44mm offset, RAIL damper Sweep-Adj, Kabolt 110
Shock: Fox Float Performance, EVOL Large Volume sleeve, 2pos, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30%
Handlebar: Giant Contact SL 35 Trail, 35x780mm
Grips: Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL)
Stem: Giant Contact SL 35
Seatpost: Tranz-X Rad+ 30,9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm)
Saddle: Giant Romero
Pedals: n/a
Shifters: Shimano Deore
Front Derailleur: MRP HD2 co-moulded chain guide
Rear Derailleur: Shimano Deore 12-speed, Shadow+
Brakes: Shimano BR-MT420, 4-piston, hydraulic disc,203mm [F/R]
Brake Levers: Shimano Deore, I-spec EV
Cassette: Shimano CS-M6100-12, 10-51T, 12-speed
Chain: KMC e.12 Turbo, EcoProteq, e-bike optimized
Crankset: Praxis N.W. 36T Cold Forged 4130 premium steel Praxis e-Cranks (Q-factor=168, S:160, M/L:165, XL:170)
Bottom Bracket: n/a
Rims: Giant AM30, Tubeless ready, 30mm inner width, 29" [F] / 27.5" [R]
Hubs: Shimano MT410 Boost, Center-Lock, 110x15 [F] 148x12 Shimano Micro-Spline Drive Body Thru-axle [R]
Spokes: Sapim E-Lite [R] Race [F], e-bike optimized
Tires: Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F]Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]
Extras: Tubeless kit (liquid, valves, levers, manual, tool)Inner tube supplied
Lighting: Optional:- Giant Recon series e-bike lights available and direct connectable
Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
