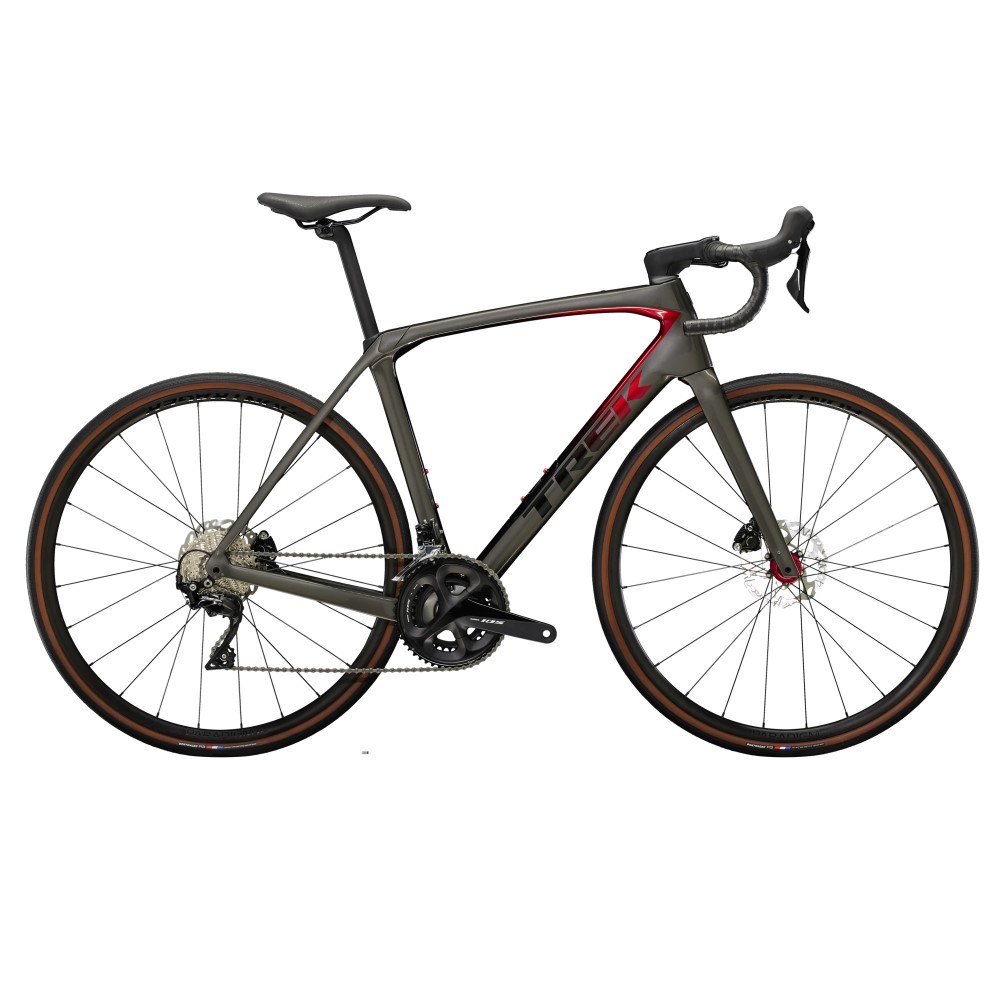

TREK DOMANE SL 5 (ONLY 1 - SIZE 54CM)

Domane SL 5 is ready to take on rough roads and long miles with a ride that's smooth, sleek, and aerodynamic. The lightweight 500-series OCLV Carbon frame has rear IsoSpeed to smooth out bumps in the road and reduce fatigue, and an integrated cockpit for a setup that looks as good as it feels. It features a reliable Shimano 105 drivetrain, disc brakes for all-weather stopping power, and an easy-access internal storage compartment for stowing ride essentials. Plus, tire clearance for lofty 38c hoops lets you take on almost any road, from tarmac to light gravel.

It's right for you if...
You want a fast ride that's built for the long haul, and you prefer the feel of vibration-damping, lightweight carbon and road-smoothing IsoSpeed. Rides might take you over smooth pavement, rough roads and well beyond, and you want a bike with wide tire clearance and disc brakes to get you through it all.

The tech you get
A light and refined 500 Series OCLV Carbon frame and fork with road-smoothing rear IsoSpeed, powerful flat-mount disc brakes, a full 2x11 Shimano 105 groupset, and tubeless ready wheels with wider 700x32 tires. An integrated cockpit, internal storage, top tube mounts, and cable routing add to the bike's capability and sleek look.

The final word
Carbon, comfort, capability. Domane SL 5 is the dream bike for long rides. Its light and fast carbon frame, stable endurance geometry, and road-smoothing rear IsoSpeed keep you comfortable through long miles. You also get the added advantage of a higher-end Shimano 105 drivetrain and powerful disc brakes that let you run wide tires.

Why you'll love it
- The sleek all-new frame saves weight and gives you more free speed thanks to updated Kammtail tube shapes
- This bike is super versatile, super smooth, and equally suited to all-day adventures on the open road, club rides, and racing
- Road-smoothing rear IsoSpeed absorbs fatiguing bumps in the road for a smoother, more comfortable ride
- A sleek internal storage compartment gives you a versatile spot to stow tools and gear, while top tube mounts let you cleanly bolt on a bag for all day adventures

Frameset
Frame: 500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle
Fork: Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Frame fit: Endurance

Wheels
Hub front
Size: 44, 47, 50, 52, 54, 56, 58, 60, 62: Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Size: 44, 47, 50, 52, 54, 56, 58, 60, 62: Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Skewer front: Bontrager Switch thru axle, removable lever
Hub rear: Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear: Bontrager Switch thru axle, removable lever
Rim: Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Tire: Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32c
Tire part: Bontrager TLR sealant, 180 ml/6 oz
Rim strip: Bontrager Aeolus XXX rim strip
Max tire size: 38mm without fenders, 35mm with fenders

Drivetrain
Shifter
Size: 44, 47, 50, 52: Shimano 105 R7025, short-reach lever, 11 speed
Size: 54, 56, 58, 60, 62: Shimano 105 R7020, 11 speed
Front derailleur: Shimano 105 R7000, braze-on
Rear derailleur: Shimano 105 R7000, long cage, 34T max cog
Crank
Size: 44, 47: Shimano 105 R7000, 50/34 (compact), 165 mm length
Size: 50, 52: Shimano 105 R7000, 50/34 (compact), 170 mm length
Size: 54, 56: Shimano 105 R7000, 50/34 (compact), 172.5 mm length
Size: 58, 60, 62: Shimano 105 R7000, 50/34 (compact), 175 mm length
Bottom bracket: Praxis, T47 threaded, internal bearing
Cassette: Shimano 105 HG700-11, 11-34, 11 speed
Chain: Shimano 105 HG601, 11 speed
Max chainring size: 1x: 48T, 2x: 52/36

Components
Saddle
Size: 44, 47, 50, 52: Bontrager Verse Short Comp, steel rails, 155mm width
Size: 54, 56, 58, 60, 62: Bontrager Verse Short Comp, steel rails, 145mm width
Seatpost
Size: 44, 47, 50, 52, 54, 56: Domane carbon seatpost, KVF shaping, 20mm offset, 280mm length
Size: 58, 60, 62: Domane carbon seatpost, KVF shaping, 20mm offset, 320mm length
Handlebar
Size: 44, 47: Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 36cm width
Size: 50: Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 38cm width
Size: 52: Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 40cm width
Size: 54, 56: Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 42cm width
Size: 58, 60, 62: Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 44cm width
Handlebar tape: Bontrager Supertack Perf tape
Stem
Size: 44: Trek RCS Pro, -7 degree, 60mm length
Size: 47: Trek RCS Pro, -7 degree, 70mm length
Size: 50: Trek RCS Pro, -7 degree, 80mm length
Size: 52, 54: Trek RCS Pro, -7 degree, 90mm length
Size: 56, 58: Trek RCS Pro, -7 degree, 100mm length
Size: 60, 62: Trek RCS Pro, -7 degree, 110mm length
Brake: Shimano 105 hydraulic disc, flat mount
Brake rotor: Shimano RT70, centerlock, 160mm
Rotor size: Max brake rotor sizes: 160mm front & rear

Accessories
Bag: Bontrager BITS Internal Frame Storage Bag

Weight
Weight: 56 - 8.93 kg / 19.69 lbs
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
