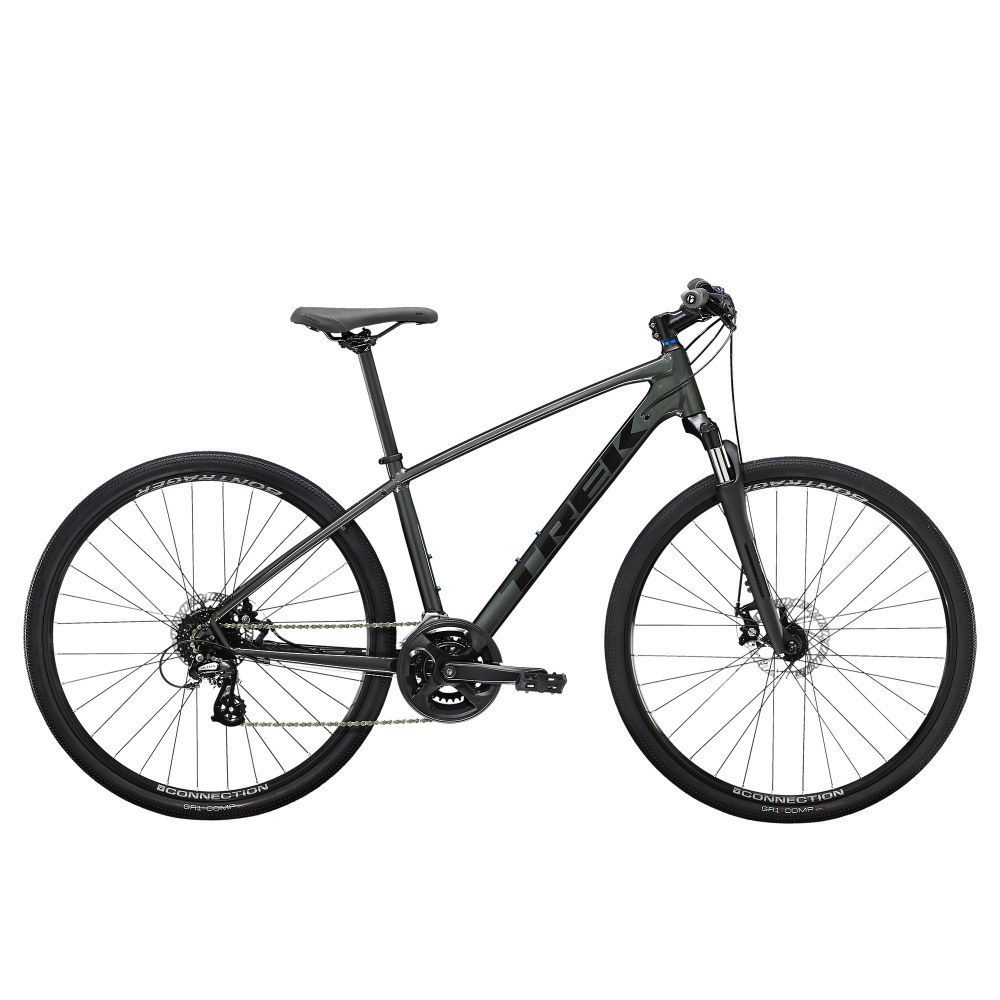

TREK DUAL SPORT 1 GEN 4

Dual Sport 1 is a hybrid bike in the true sense of the term: it excels on a variety of surfaces, and can take you from smooth pavement to light off-road trails in a single ride. A reliable frame, suspension fork, and all-terrain tires give Dual Sport 1 an incredible amount of capability on recreational fitness rides.

It's right for you if...
You want a single hybrid bike that's efficient on pavement and comfortable on rougher terrain and even light trails. You value confidence, stability, versatility, and performance on recreational rides and commutes that cover a variety of terrain.

The tech you get
A sturdy aluminum frame, a suspension fork with enough travel to take the edge off in rough terrain, a reliable drivetrain with 16 speeds and a wide range of gearing so you're never pedaling too hard or too soft, all-terrain tires that are grippy yet fast-rolling, and disc brakes for all-weather stopping power.

The final word
City bike, trail bike, your bike. Dual Sport 1 is an all-terrain hybrid bike built for adventure on or off the road, and ready to take you from week to weekend and back in comfortable, confident style.

Why you'll love it
- Why choose between the road and trail? Dual Sport is a versatile hybrid that excels on a variety of terrain
- It's easy to accessorize your frame with racks, a kickstand, fenders, lights, and more!
- The 2x drivetrain gives you all the gears you need and none you don’t
- DuoTrap S compatibility makes it easy to wirelessly track your rides, so you can set goals and watch yourself reach them
- Internal cable routing extends the life of your cables and adds to the bike's sleek look

Specifications
Frameset
Frame:
Size: S Alpha Gold Aluminium, curved top tube, DuoTrap S-compatible, internal cable routing, rack and mudguard mounts, post-mount disc, kickstand mount, 135x5 mm QR
Size: M, L, XL Alpha Gold Aluminium, DuoTrap S-compatible, internal cable routing, rack and mudguard mounts, post-mount disc, kickstand mount, 135x5 mm QR
Fork: SR Suntour NEX, coil spring, preload, 100x5mm QR, 63mm travel
Wheels
Hub front: Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Hub rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Skewer rear: 152x5mm QR
Rim: Bontrager Connection, alloy, double-wall, 32-hole, Schrader valve
Tire: Bontrager GR1 Comp, wire bead, 60 tpi, 700x40 c
Max tire size: Frame: 700x45c with fenders, 29x2.10" without fenders Fork: See manufacturer
Drivetrain
Shifter: Shimano EF500, 8 speed
Front derailleur: Shimano Tourney TY710, 34.9 mm clamp, top swing, dual pull
Rear derailleur: Shimano Altus M310
Crank: Forged alloy, 46/30, chainguard, 170 mm length
Bottom bracket: Sealed cartridge, 68mm
Cassette: Shimano HG31, 11-32, 8 speed
Chain: KMC Z8.3
Pedal: Wellgo nylon platform
Components
Saddle: Bontrager Sport
Seatpost: Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Handlebar:
Size: S, M Bontrager Riser, steel, 25.4 mm, 30 mm rise, 600 mm width
Size: L, XL Bontrager Riser, steel, 25.4 mm, 30 mm rise, 620 mm width
Grips: Bontrager Satellite
Stem:
Size: S, M Bontrager alloy, 25.4 mm clamp, 10-degree, 90 mm length
Size: L, XL Bontrager alloy, 25.4 mm clamp, 10-degree, 110 mm length
Headset: 1-1/8" threadless, sealed cartridge bearings
Brake: Tektro MD-M280 mechanical disc, 160mm rotor
Weight
Weight: M - 13.54 kg / 29.86 lbs
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
