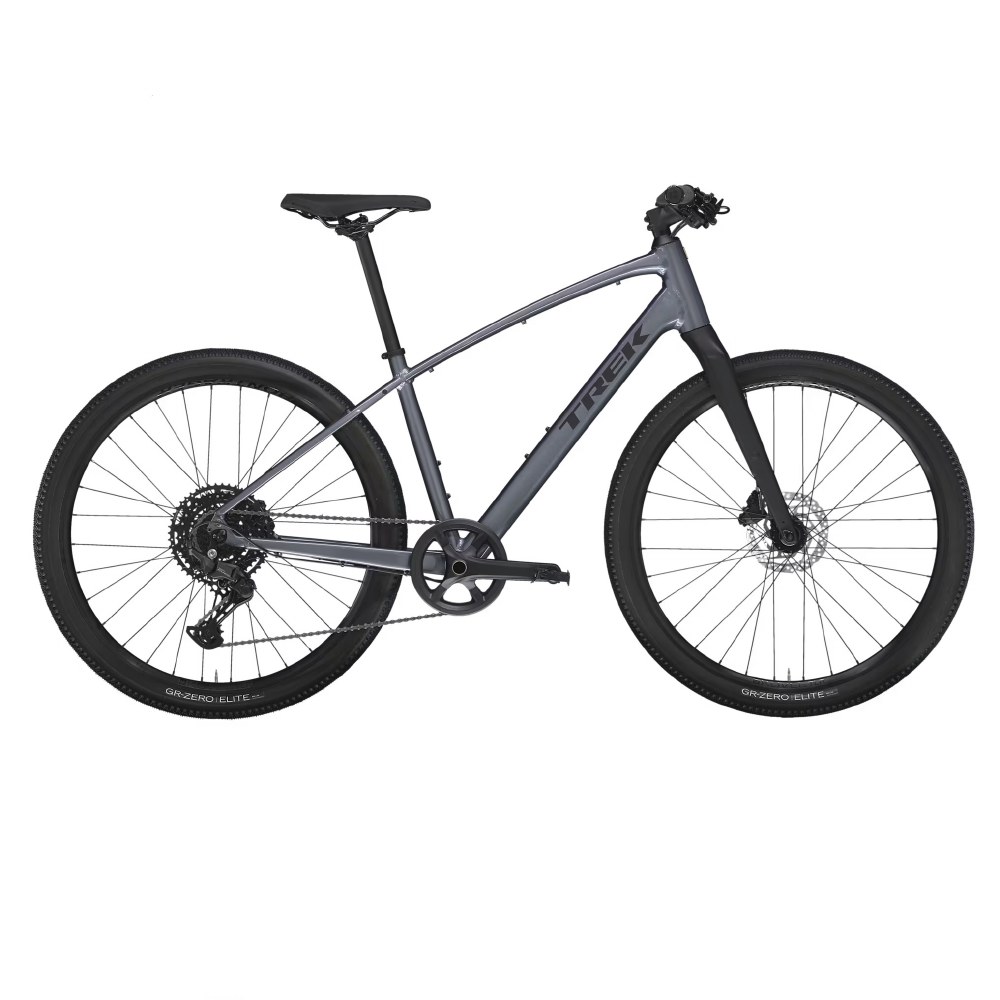

TREK DUAL SPORT 3 GEN 5

Dual Sport 3 is a high-performance, go-anywhere hybrid bike that transitions from pavement to rougher terrain with ease. It has a light frame and a simple 1x Shimano CUES drivetrain with a wide range of gears. Its wide Bontrager Kovee wheels and wide gravel tires soak up bumps and rough terrain for a comfortable, confident ride on pavement, rail trails, and light dirt paths.





*Please note - spec applies to all sizes unless listed separately

SPECIFICATIONS

Frameset
Frame: Alpha Gold Aluminum, internal cable routing, rack & fender mounts, post mount disc, kickstand mount, 135x5mm QR
Fork: Dual Sport carbon, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm QR

Wheels
Front Hub: Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Front Skewer: 139x5mm bolt-on
Rear Hub: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Rear Skewer: 152x5mm QR
Rim: Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Tire: Bontrager GR0 Elite, wire bead, puncture protection, 60 tpi, 650x50mm
Max tire size: 27.5x2.00"

Drivetrain
Shifter: Shimano CUES U6000 w/optical gear display, 10 speed
Rear Derailleur: Shimano CUES U6000 GS
Crank:
Size: S, M Prowheel alloy, 40T narrow-wide ring, 170 mm length
Size: XL, L Prowheel alloy, 40T narrow-wide ring, 175 mm length
Cassette: Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed
Chain: Shimano LG500
Pedal: Wellgo nylon body, alloy cage
Max chainring size: 1x: 42T, 2x/3x: 48T

Components
Saddle: Bontrager H1
Seatpost: Bontrager alloy, 27.2mm, 12mm offset, 330mm length
Handlebar:
Size: S Bontrager Comp Lowriser, alloy, 31.8mm, 15mm rise, 600mm width
Size: L, M Bontrager Comp Lowriser, alloy, 31.8mm, 15mm rise, 660mm width
Size: XL Bontrager Comp Lowriser, alloy, 31.8mm, 15mm rise, 690mm width
Grips: Bontrager XR Endurance Elite
Stem:
Size: S Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: L, M Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: XL Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Brake: Shimano hydraulic disc, MT201 lever, UR300 caliper
Brake Rotor: Shimano RT26, 6-bolt, 160mm
Rotor size: Max brake rotor sizes: 160mm front & rear

Weight
Weight: M - 12.05 kg / 26.57 lbs
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
