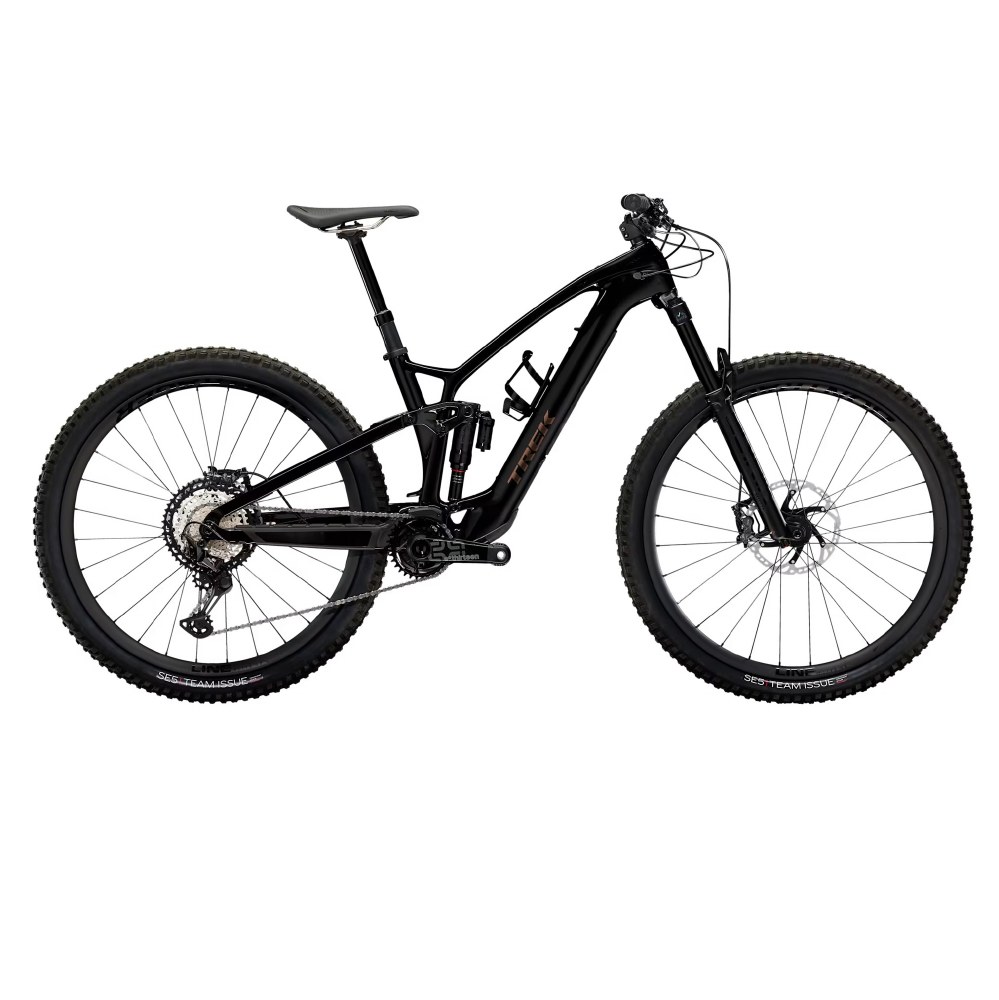

TREK FUEL EXE 9.8 XT (DEMO)

Fuel EXe 9.8 XT is a new breed of mountain bike that brings nearly invisible power to the trail in an e-package that's compact and adapts to your riding. It's fully loaded with a tiny but mighty TQ transmission that gives you assist when you need it but disappears for a true trail bike feel on descents. A carbon fiber frame keeps your ride light and responsive, and an upgraded RockShox suspension package pairs with Shimano XT shifting to finish the build with the perfect balance of performance and price.



SPECIFICATIONS

Frameset
Mainframe: OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel
Fork: RockShox Lyrik Select+, DebonAir spring, Charger 2.1 RC damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 150mm travel
Shock: RockShox Super Deluxe Select+ RT, 205mm x 60mm

Wheels
Front Wheel: Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
Rear Wheel: Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle, 29''
Front Hub: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Rear Skewer: Bontrager Switch thru axle, removable lever
Rim: Bontrager Line Elite 30, Tubeless Ready
Tire: Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
Tire Part: Bontrager TLR sealant, 180 ml/6 oz
Rim Strip: Bontrager TLR
Max tire size: Frame: 29x2.50", Fork: See manufacturer

E-system
Battery: TQ 360Wh
Charger: TQ 4A charger
Computer: TQ LED display with Bluetooth & ANT+ connectivity
Motor: TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power

Drivetrain
Shifter: Shimano XT M8100, 12 speed
Rear Derailleur: Shimano XT M8100, long cage
Crank: E*thirteen E*spec Race carbon, 165mm length
Chain Ring: E*thirteen E*spec, 32T alloy ring, 55mm chainline
Cassette: Shimano XT M8100, 10-51, 12 speed
Chain: Shimano Ultegra/XT M8100, 12 speed
Max chainring size: 1x: 34T, min 30T

Components
Saddle: Bontrager Arvada, austenite rails, 138mm width
Seatpost:
Size: S Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length
Size: M Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length
Size: L Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length
Size: XL Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length
Integrated Bar Stem:
Size: S Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 35mm stem length
Size: XL, L, M Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 45mm stem length
Grips: Bontrager XR Trail Elite, nylon lock-on
Brake: Shimano XT M8120 4-piston hydraulic disc
Brake Rotor: Shimano RT76, 6-bolt, 180mm, Shimano RT76, 6-bolt, 203mm
Rotor size: Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer

Weight
Weight: M - 18.10 kg / 39.91 lbs (with TLR sealant, no tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
