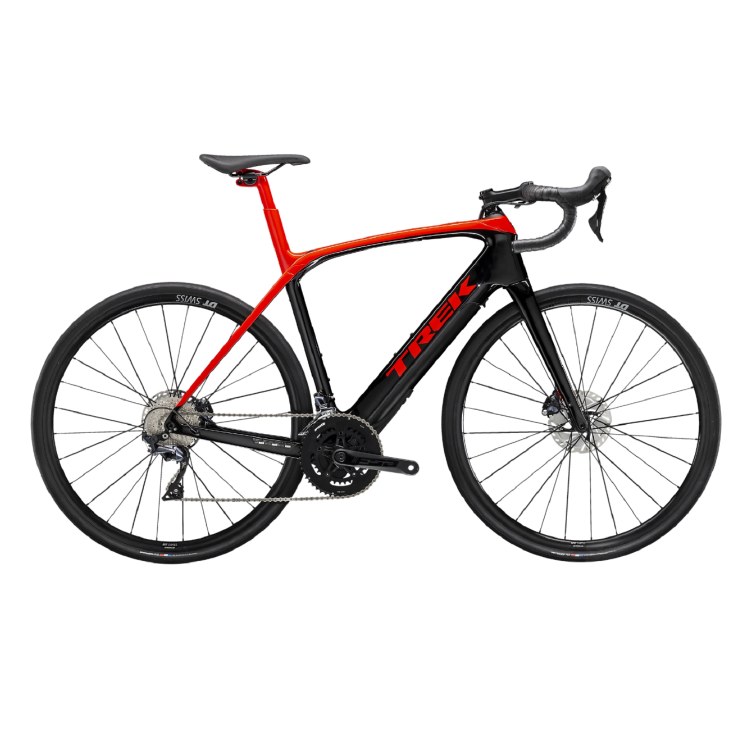

TREK DOMANE+ LT (58CM DEMO)

Domane+ LT is a carbon drop-bar electric bike designed for roadies who want an authentic road bike experience with an extra boost. The sleek and efficient Fazua drive system kicks things up a notch when you need it—like riding into a headwind or beating your buddy up a climb—but doesn't drag or hold you back when it's not in use.

Specifications
Frameset
Frame: 500 Series OCLV Carbon, Fazua Evation integrated drive system, tapered head tube, rear IsoSpeed, internal routing, flat-mount disc, mudguard mounts, 148x12 mm thru axle
Fork: Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Frame fit: Endurance
Wheels
Wheel front: DT Swiss G1800, tubeless compatible, 100x12 mm thru axle
Wheel rear: DT Swiss G1800, tubeless-compatible, 148x12 mm thru axle
Skewer front: Bontrager Switch thru axle, removable lever
Skewer rear: Bontrager Switch thru-axle, removable lever
Tire: Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32 c
Max tire size: 38c
Drivetrain
Shifter: Shimano Ultegra R8020, 11 speed
Front derailleur: Shimano Ultegra R8000, braze-on
Rear derailleur: Shimano Ultegra R8000, long cage, 34T max cog
Crank:
Size: 50, 52 FSA Alloy for Fazua, 50/34 chainrings, 170mm length
Size: 54, 56 FSA Alloy for Fazua, 50/34 chainrings, 172.5mm length
Size: 58, 60, 62 FSA Alloy for Fazua, 50/34 chainrings, 175mm length
Cassette: Shimano Ultegra HG800-11, 11-34, 11 speed
Chain: Shimano Ultegra HG701, 11 speed
Components
Saddle:
Size: 50, 52, 54, 56, 58, 60, 62 Bontrager Arvada Comp, steel rails, 138 mm width
Size: 50, 52, 54, 56, 58, 60, 62 Bontrager Arvada Elite, stainless steel rails, 138 mm width
Seatpost:
Size: 50, 52, 54, 56 Bontrager carbon internal seat mast cap, integrated light mount, 20 mm offset, short length
Size: 58, 60, 62 Bontrager carbon internal seat mast cap, integrated light mount, 20 mm offset, tall length
Handlebar:
Size: 50, 52 Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 40cm width
Size: 54, 56 Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, internal Di2 routing, 93 mm reach, 123 mm drop, 42 cm width
Size: 58, 60, 62 Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, internal Di2 routing, 93 mm reach, 123 mm drop, 44 cm width
Handlebar tape: Bontrager Supertack Perf tape
Stem:
Size: 50 Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: 52, 54 Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size: 56, 58 Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Size: 60, 62 Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
Brake: Shimano Ultegra hydraulic disc, flat mount
Brake rotor:
Size: 50, 52, 54, 56, 58, 60, 62 Shimano MT800, CenterLock, 160 mm
Size: 50, 52, 54, 56, 58, 60, 62 Shimano EM810, CenterLock 160 mm
Accessories
Battery: Fazua Evation battery, 250 Wh
Charger: Fazua Evation charger, 90-120V
Motor: Fazua Evation Drive Pack, 32 km/h max assist
Computer: Fazua Evation touch remote
Weight
Weight: 32.3 lbs / 14.7 kg with drivepack, 26 lbs / 11.8 kg without drivepack (including storage cover, sold separately)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
