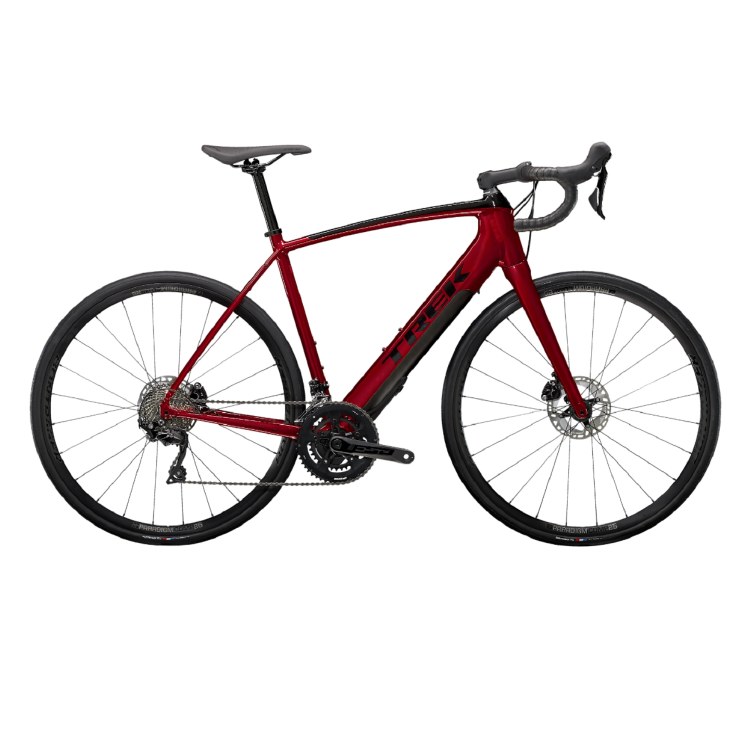

TREK DOMANE+ ALR

Domane+ ALR is an aluminum drop-bar electric bike designed for roadies who want an authentic road bike experience with an extra boost. The sleek and efficient Fazua drive system kicks things up a notch when you need it—like riding into a headwind or keeping pace with your buddy—but doesn't drag or hold you back when it's not in use.

Specifications
Frameset
Frame: 300 Series Alpha Aluminum, Fazua Evation integrated drive system, tapered head tube, internal routing, flat mount disc, fender mounts, 148x12mm thru axle
Fork: Domane+ carbon, tapered alloy steerer, flat mount disc, 12x100mm thru axle
Frame fit: Endurance
Wheels
Wheel front: Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru axle
Wheel rear: Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, Shimano 11/12-speed freehub, 148x12 thru axle
Hub front: Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru axle
Skewer front: Bontrager Switch thru axle, removable lever
Rim: Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width
Tire: Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 c
Max tire size: 38c
Drivetrain
Shifter:
Size: 49, 52 Shimano 105 R7025, short-reach lever, 11 speed
Size: 54, 56, 58, 61 Shimano 105 R7020, 11 speed
Front derailleur: Shimano 105 R7000, braze-on
Rear derailleur: Shimano 105 R7000, long cage, 34T max cog
Crank:
Size: 49, 52 FSA Alloy for Fazua, 50/34 chainrings, 170mm length
Size: 54, 56 FSA Alloy for Fazua, 50/34 chainrings, 172.5mm length
Size: 58, 61 FSA Alloy for Fazua, 50/34 chainrings, 175mm length
Cassette: Shimano 105 HG700-11, 11-34, 11 speed
Chain: Shimano 105 HG601, 11 speed
Components
Saddle: Bontrager Arvada Comp, steel rails, 138 mm width
Seatpost: Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length
Handlebar:
Size: 49, 52 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 40 cm width
Size: 54, 56 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width
Size: 58, 61 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width
Handlebar tape: Bontrager Supertack Perf tape
Stem:
Size: 49 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Size: 61 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
Headset: FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Brake: Shimano 105 hydraulic disc, flat mount
Brake rotor:
Size: 49, 52, 54, 56, 58, 61 Shimano MT800, CenterLock, 160 mm
Size: 49, 52, 54, 56, 58, 61 Shimano EM810, CenterLock 160 mm
Accessories
Battery: Fazua Evation battery, 250 Wh
Charger: Fazua Evation charger, 90-120V
Motor: Fazua Evation Drive Pack, 32 km/h max assist
Computer: Fazua Evation touch remote
Weight
Weight: 56 - 15.21 kg / 33.54 lbs
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
