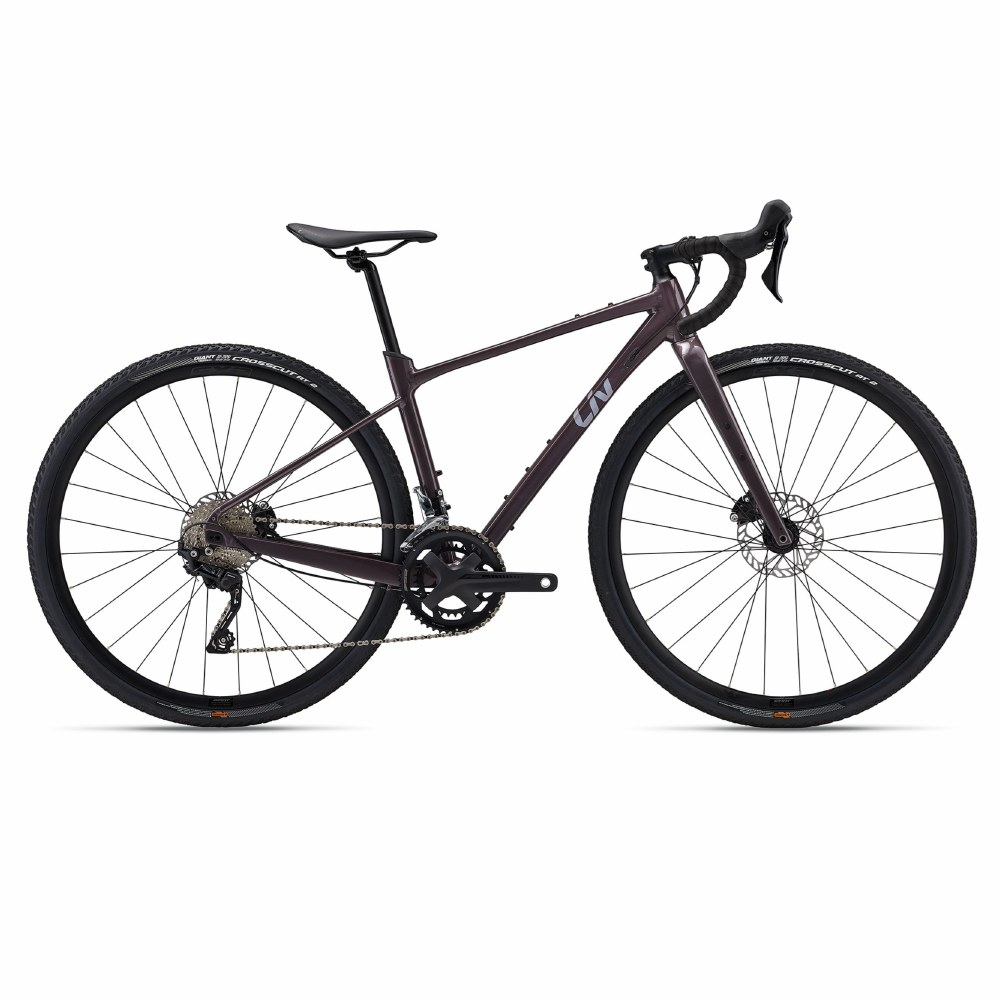

LIV DEVOTE 1

The Devote was designed to satisfy your gravel wanderlust. Balancing performance and ruggedness, this versatile bike is ready for anything from short cuts through the woods to long, winding trails, as well as crushing your first gravel race.

Key Performance Factors

Lightweight and Sleek
The durable yet lightweight ALUXX-grade aluminum frame with an Advanced-grade composite fork offer a smooth and forgiving ride, handy when you find yourself on the road less traveled. The redesigned geometry puts you in a more performance-oriented position and gives you added control whether you’re picking up speed or detouring downhill to the swimming hole.

Superior Comfort and Control
The Contact XR D-Fuse handlebar features a 5-degree back sweep and flare drop for a comfortable and ergonomic grip. The Contact D-Fuse seatpost can be swapped out for a 30.9mm or 27.2mm round seatpost. These proprietary D-Fuse components absorb bumps and reduce vibrations, ensuring less fatigue and more fun on those epic rides.

Unmatched Versatility
Adapt to the route with the flip chip – dropout, which lets you adjust your wheelbase length and rear-wheel tire clearance. Go shorter for responsive handling and quick acceleration. Go longer for added stability plus clearance for larger tires and extra traction.

Tech & Features

Advanced Composite Technology
Liv’s High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv’s Advanced-Grade Composite frames are designed to offer light weight and stiffness with optimal compliance.

ALUXX Aluminum Technology
This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.

D-Fuse Seatpost
The proprietary “D” shaped composite seatpost damps vibration, resulting in a smooth, compliant ride.

OverDrive
Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

Tubeless System
Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.

Specifications

Frame: ALUXX-grade aluminum, 12x142mm thru-axle, flat mount disc, flip chip – dropout
Fork: Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, flat mount disc
Shock: N/A
Handlebar: Giant Contact XR D-Fuse, 31.8mm, 5-degree back sweep, flare drop, alloy XS: 400mm, S: 400mm, M: 420mm, L: 420mm
Grips: cork tape with gel
Stem: Giant Contact, +/- 8 degree, alloy XS: 50mm, S: 60mm, M: 70mm, L: 80mm
Seatpost: Giant Contact D-Fuse, alloy, 14mm offset
Saddle: Liv Approach
Pedals: N/A
Shifters: Shimano GRX RX-400, 2x10
Front Derailleur: Shimano Tiagra
Rear Derailleur: Shimano GRX RX-400
Brakes: Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers: Shimano GRX RX-400 hydraulic
Cassette: Shimano HG500, 11x34
Chain: KMC X10 with Missing Link
Crankset: FSA Omega Adventure, 32/48 XS: 165mm, S: 170mm, M: 172.5mm, L: 172.5mm
Bottom Bracket: FSA Mega EXA
Rims: Giant S-X2 Disc wheelset, alloy
Hubs: Giant alloy, 12mm thru-axle
Spokes: stainless
Tires: Giant CrossCut AT 2, 700x38c, tubeless
Extras: Tubeless prepared, 45mm max tire size in "long" flip chip position, 40mm max tire size in "short" flip chip position (due to Tiagra F.Der. arm clearance)
Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
