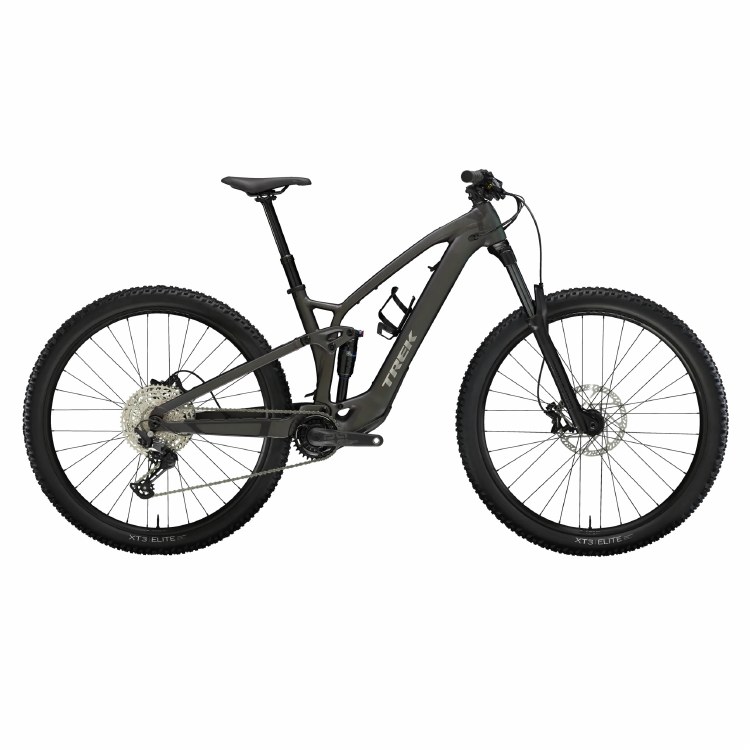

TREK FUEL EXE 5

Fuel EXe 5 is an aluminum electric mountain bike that brings all the tech of its carbon counterpart into a pocket-friendly package. It boasts the same tiny-but-mighty drive system that quietly disappears under you, plus a sleek display and remote. But what really makes this bike excel is its true trail bike feel that handles just like a traditional mountain bike, just with a little extra power.

It's right for you if...
You're looking for a bike that makes climbs a little sweeter without sacrificing the handling on descents. You want to enter the world of light e-mountain bikes without blowing through your entire bank account, and don't mind upgrading some of the parts later.

The tech you get
An Alpha Platinum Aluminum frame with TQ's HPR50 harmonic pin ring drive system, a fully-encased 360Wh removable battery, and smart charging port. An integrated LED display and handlebar remote that are easy to use on the fly. 150mm of air-sprung RockShox Recon Silver Solo front suspension with motion control damper and a lockout, and 140mm X-Fusion Pro 2 rear suspension with 2-position damper. Plus, 12-speed Shimano Deore shifting, hydraulic disc brakes, and a dropper post.

The final word
If you're ready to add power to your trail rides without breaking the bank, Fuel EXe 5 is your answer. It gives you all the tech of its higher-end carbon sibling with parts you can upgrade over time.

Why you'll love it
- You get all the fun of a trail bike, plus a little extra push to help you crush climbs and save some juice for the descent
- Its tiny but mighty TQ motor is tuned for the trail, keeping things quiet so you can stay in the moment, and ramps up power with you for a natural ride feel
- The integrated display, charging port, and controls are simple to use, sleek, and intuitive
- You can tweak your geometry with Mino Link, or add an adjustable angle headset to take even more control
- If you want to ride farther you can easily add a range extender that fits neatly in your bottle cage

SPECIFICATIONS

Frameset
Frame: Alpha Platinum Aluminum, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel
Fork: RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, Maxle Stealth, 150mm travel
Shock: X-Fusion Pro 2, 2-position damper, 205mm x 60mm
Max compatible fork travel: 160mm (575mm axle-to-crown)

Wheels
Hub front: Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
Hub rear: Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle
Skewer rear: Bontrager Switch thru axle, removable lever
Rim: Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve
Tire: Bontrager XT3 Elite, wire bead, 60 tpi, 29x2.40"
Rim strip: Bontrager TLR
Max tire size: Frame: 29x2.50", Fork: See manufacturer

E-system
Battery: TQ 360Wh
Computer: TQ LED display with Bluetooth & ANT+ connectivity
Motor: TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power

Drivetrain
Shifter: Shimano Deore M6100, 12 speed
Rear derailleur: Shimano Deore M6100, long cage
Crank: E*thirteen E*spec Plus, 165mm length
Chain ring: E*thirteen E*spec, 32T alloy ring, 55mm chainline
Cassette: Shimano Deore M6100, 10-51, 12 speed
Chain: Shimano Deore M6100, 12 speed
Max chainring size: 1x: 34T, min 30T

Components
Saddle: Bontrager Arvada, steel rails, 138 mm width
Seatpost:
Size: S: TranzX JD-YSI-22PLQ, 100mm travel, internal routing, 34.9mm, 346mm length
Size: M: TranzX JD-YSI-22PLQ, 150mm travel, internal routing, 34.9mm, 454mm length
Size: L, XL: TranzX JD-YSI-22PLQ, 170mm travel, internal routing, 34.9mm, 497mm length
Handlebar: Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width
Grips: Bontrager XR Trail Comp, nylon lock-on
Stem: Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
Headset: Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
Brake: Tektro HD-M745 hydraulic disc
Brake rotor: Tektro, 6-bolt, 203mm
Rotor size: Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer

Accessories
Electronics: TQ 4A charger

Weight
Weight: M - 20.80 kg / 45.86 lbs (with TLR sealant, no tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
