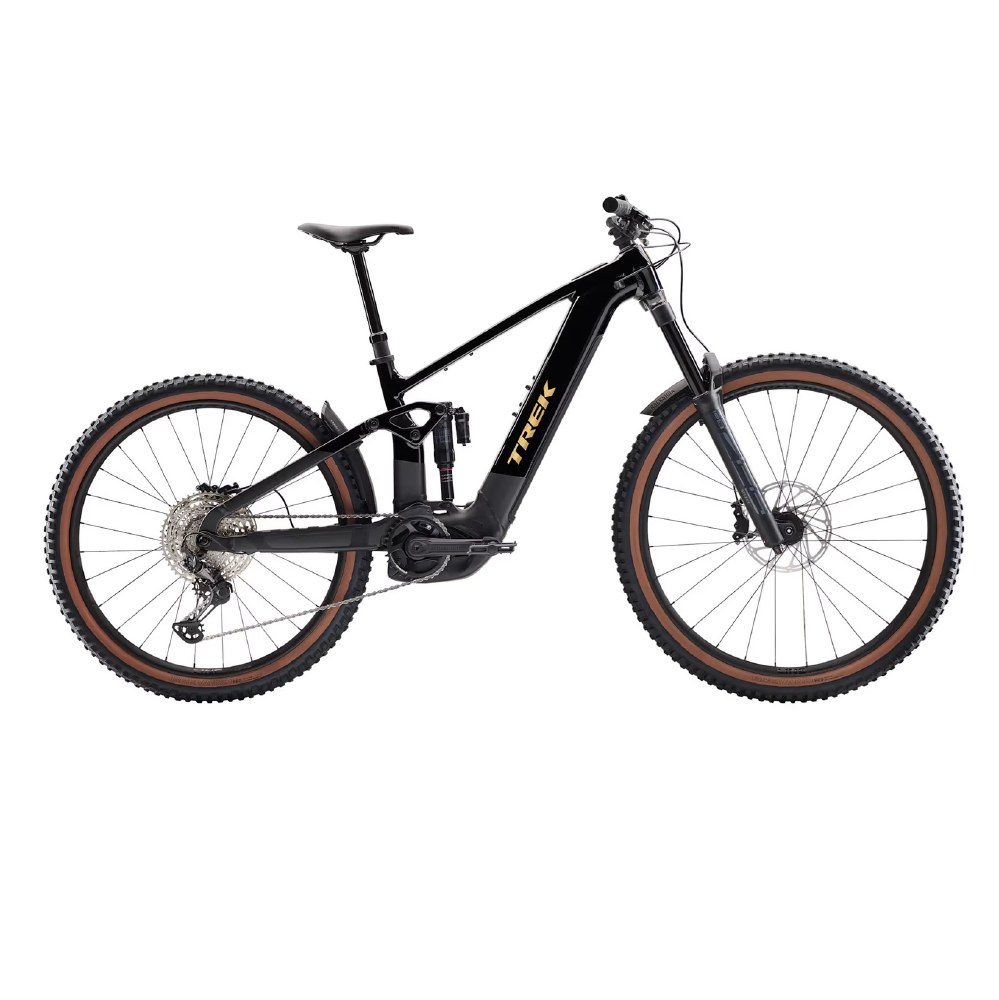

TREK RAIL+ 8 GEN 5

Rail+ 8 is an aluminum enduro e-bike with big power and tons of travel for wild, ride-anything adventures. It starts with an Alpha Platinum Aluminum frame paired with a RockShox Super Deluxe+ shock and ZEB Select fork (160mm front/rear) for making quick work of chunky backcountry rock gardens. You get the smooth-shifting performance of a Shimano XT/SLX drivetrain, stop-on-a-dime control from SRAM DB 8 4-piston disc brakes, a Bontrager Line dropper post, and tubeless-ready Bontrager Line TLR 30 wheels.

It's right for you if...
You want a bike that maximizes the fun and is up for gnarly rides that get you off the grid or just hammering in an extra lap or two. You need the capability of an enduro bike for pointing it down the rough and rowdy, and love the feeling of full assist taking the sweat out of the climb back to the top for more.

The tech you get
An Alpha Platinum Aluminum frame with a Bosch Performance CX system (85Nm, 250W), and 800Wh Removable Integrated Battery 2.0. A 160mm RockShox ZEB Select fork with DebonAir spring, Motion Control damper and lockout, and a RockShox Deluxe Select+ RT shock. All topped off with a Shimano XT and SLX blended 12-speed drivetrain, dropper post, Bontrager Line Comp 30 Tubeless Ready wheels, and 4-piston Shimano hydraulic disc brakes.

The final word
Rail + 8 is an enduro e-MTB dialed for big adventures. It packs in capable, adjustable geometry, a massive battery, and a powerful motor to get you wherever you want to go. An upgraded drivetrain balances price and performance for a ride that's ready for anything.

Why you'll love it
1- Rail+ delivers adventure with plenty of travel and power for getting after epic rides that take you peak to peak or chasing endless enduro laps
2 - The powerful Bosch Performance CX system goes full gas up steep climbs and keeps you cool for the descents
3 - You can tweak your geometry and suspension leverage rate for how you ride, and add in adjustable angle headset cups (sold separately) for even more adjustability
4 - -Want even more boost? With the Bosch e-Bike Flow app, you can increase torque to 100Nm and peak power up to 750W.
5 - The massive 800Wh RIB 2.0 battery supports you for big miles and can be easily removed for travel or storage, and is compatible with PowerMore for even bigger rides



Specifications

Frameset
Frame: Alpha Platinum Aluminum, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Control Freak internal routing, Motor Armor, Boost148, 12mm thru axle, 160mm travel
Fork: RockShox ZEB Select, DebonAir spring, Charger RC damper, tapered steerer, 44mm offset, Boost110, Maxle Stealth, 160mm travel
Shock: RockShox Super Deluxe Select RT, 205mm x 65mm
Max compatible fork travel: 180mm

Wheels
Wheel front:
Size S: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5''
Size M, L, XL: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
Wheel rear: Bontrager Line Comp 30, High Strength 6000 Series Aluminum rim, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle, 27.5''
Skewer rear: Bontrager Switch thru axle, removable lever
Tire
Size S, M, L, XL: Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50"
Size: M, L, XL: Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50"
Tire part: Bontrager TLR sealant, 180 ml/6 oz
Max tire size: Frame: 27.5x2.60", Fork: See manufacturer

E-system
Battery: Bosch PowerTube 800Wh, smart system
Charger: Bosch standard 4A, 110V, smart system
Controller: Bosch System Controller BRC3100, smart system
Motor: Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)

Drivetrain
Shifter: Shimano SLX M7100, 12 speed
Rear derailleur: Shimano XT M8100, long cage
Crank arm: E*thirteen E*spec Plus, 160mm length
Cassette: Shimano Deore M6100, 10-51, 12 speed
Chain: Shimano SLX M7100, 12 speed
Pedal: VP-536 nylon platform
Max chainring size: 1x: 36T

Components
Saddle: Bontrager Verse P3, steel rails
Seatpost
Size S: Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length
Size M, L, XL: Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length
Size L, XL: Bontrager Line Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 5150mm length
Handlebar: Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width
Grips: Bontrager XR Trail Comp, nylon lock-on
Stem: Bontrager Elite, 35mm, 0 degree, 45mm length
Headset: Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
Brake: SRAM DB 8 4-piston hydraulic disc
Brake rotor: SRAM CenterLine, 6-bolt, round edge, 200mm
Rotor size: Max brake rotor sizes - Frame: 220mm, Fork: see fork manufacturer

Weight
Weight: M - 25.08 kg / 55.3 lbs (with TLR sealant, no tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
