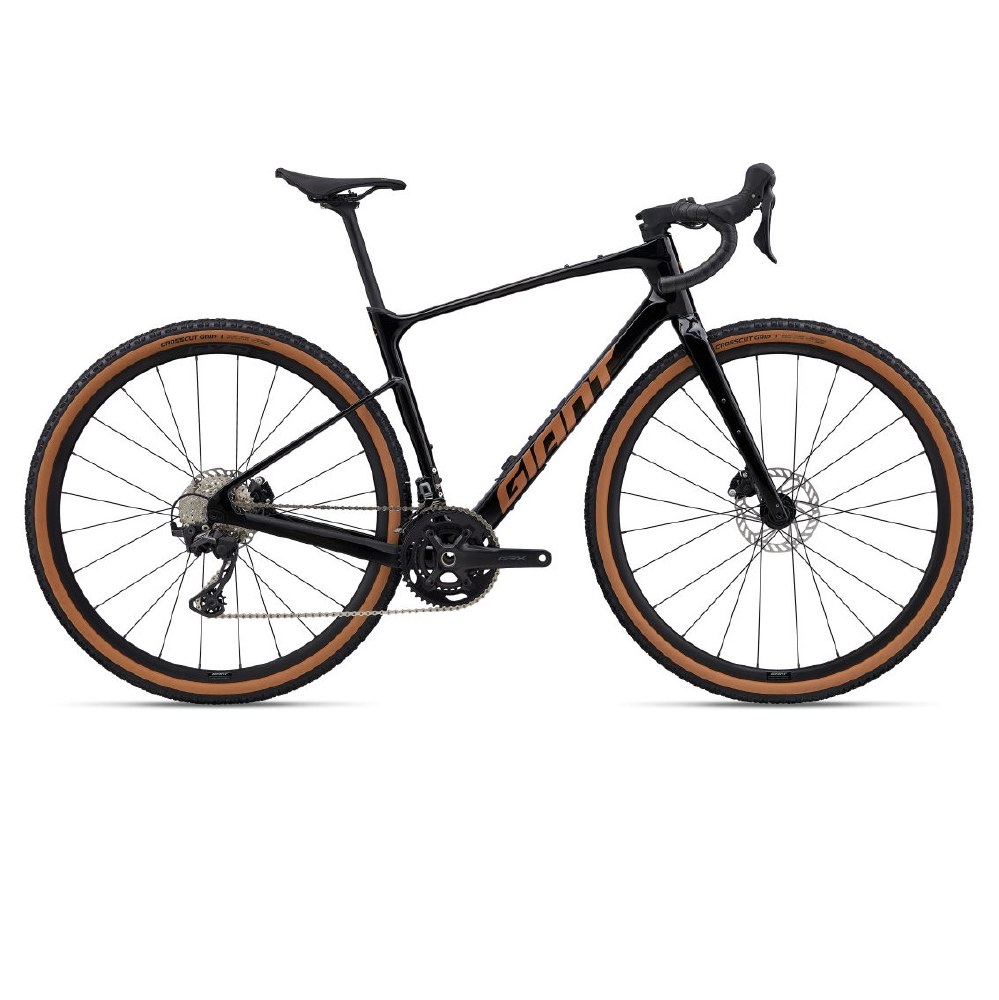

GIANT REVOLT ADVANCED 2

Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.

Key Performance Factors

Fast and light
Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.

Tuned compliance
Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

SPECIFICATIONS

Frame: Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
Fork: Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Handlebar: Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips: Stratus Lite 3.0
Stem: Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost: Giant D-Fuse, composite, 14mm offset
Saddle: Giant Grit
Shifters: Shimano GRX RX-610, 2x12
Front Derailleur: Shimano GRX RX-820
Rear Derailleur: Shimano GRX RX-820
Brakes: Shimano BR-RX410hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers: Shimano GRX RX-610 hydraulic
Cassette: Shimano CS-HG710, 12-speed, 11x36
Chain: KMC X12L-1
Crankset: Shimano FC-RX610-2, 30/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket: Shimano, press fit
Rims: Giant P-X2 , alloy
Hubs: Giant alloy, 12mm thru-axle
Spokes: Sapim
Tires: Giant Crosscut Grip, 700x45c, tubeless
Extras:tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position, in-frame storage bag
Max Tire Clearance: 53mm
Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
