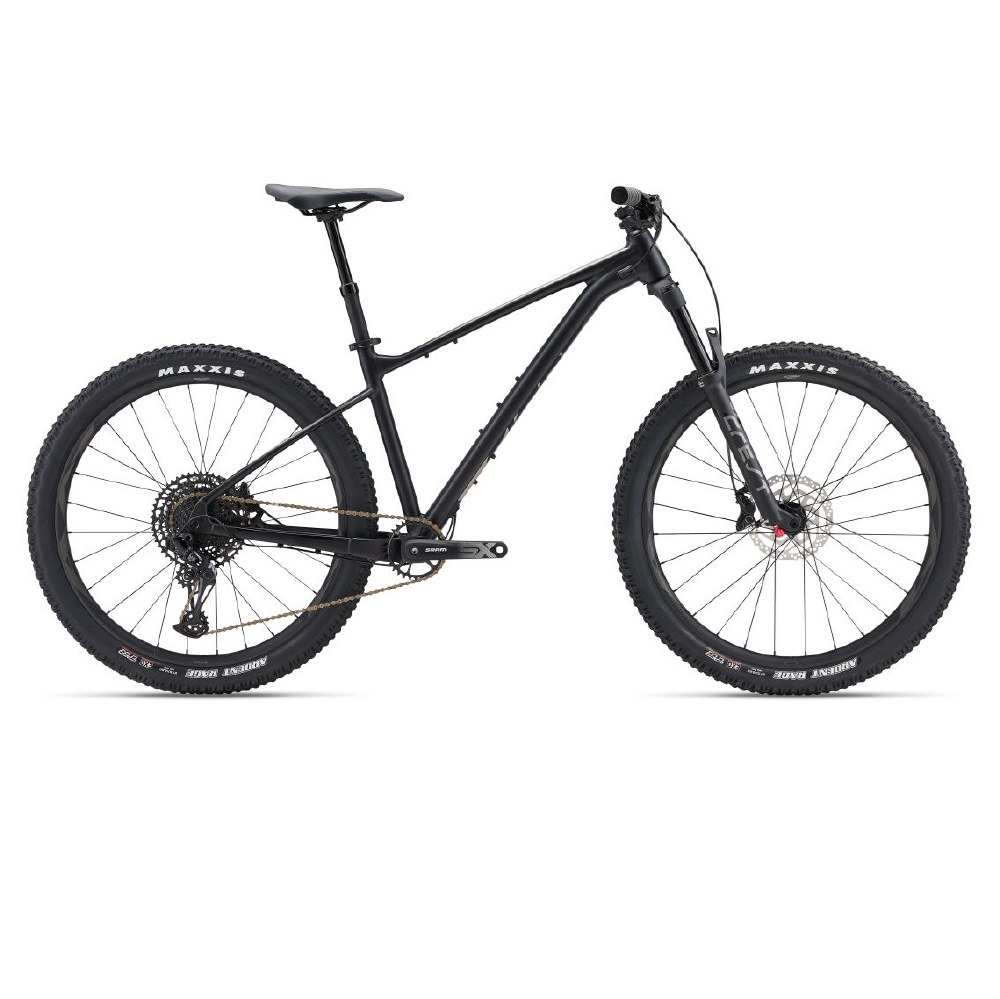

GIANT FATHOM 1

Get your daily dose of singletrack. This fun-loving hardtail puts you in control with a lightweight alloy frame, 130mm suspension fork, and 27.5 wheels paired with high-volume tires to give you maximum traction, speed and control on the trail.

Key Performance Factors

Trail tuned design
Balanced geometry with a 75-degree seat tube angle puts the rider in a powerful pedaling position on climbs, while a slacker 66-degree head angle boosts confidence and control on technical descents.

Responsive handling
Lightweight ALUXX SL aluminum hardtail frame offers agile acceleration and maneuverability to help riders climb, corner and hammer the flats with efficiency and speed.

Smooth control
Giant Crest 34 suspension fork with 130mm of travel absorbs roots, rocks and ruts. Grippy, high-volume tires boost traction on rugged terrain. And a dropper seatpost with handlebar remote lets you adjust saddle height on the fly for confident positioning

SPECIFICATIONS

Frame: ALUXX SL-grade aluminum, 12x148mm thru-axle
Fork: Giant Crest 34 SL RCL, 130mm, 44mm offset, Boost 15x110
Shock: N/A
Handlebar: Giant Contact SL TR35, 780x35mm
Grips: Giant Sole-O
Stem: Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
Seatpost: Giant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm
Saddle: Giant Romero
Pedals: N/A
Shifters: SRAM SX Eagle, 1x12
Front Derailleur: N/A
Rear Derailleur: SRAM NX Eagle
Brakes: Shimano BR-MT420/410, hydraulic, Shimano RT-26 rotors [F]180mm, [R]180mm
Brake Levers: Shimano BR-MT401
Cassette: SRAM SX Eagle, 11x50
Chain: SRAM SX Eagle
Crankset: SRAM SX Eagle, 30t S:165mm, M:170mm, L:170mm, XL:170mm
Bottom Bracket: SRAM SX PowerSpline, threaded
Rims: Giant AM 27.5, tubeless ready sleeve-joint rim, 30mm inner width
Hubs: alloy, sealed
Spokes: stainless
Tires: Minion DHF 27.5x2. 5" WT [F] Dissector 2.4" WT [R]
Extras: tubeless prepared, 2.6" max tire size, 32t max chainring size
Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
