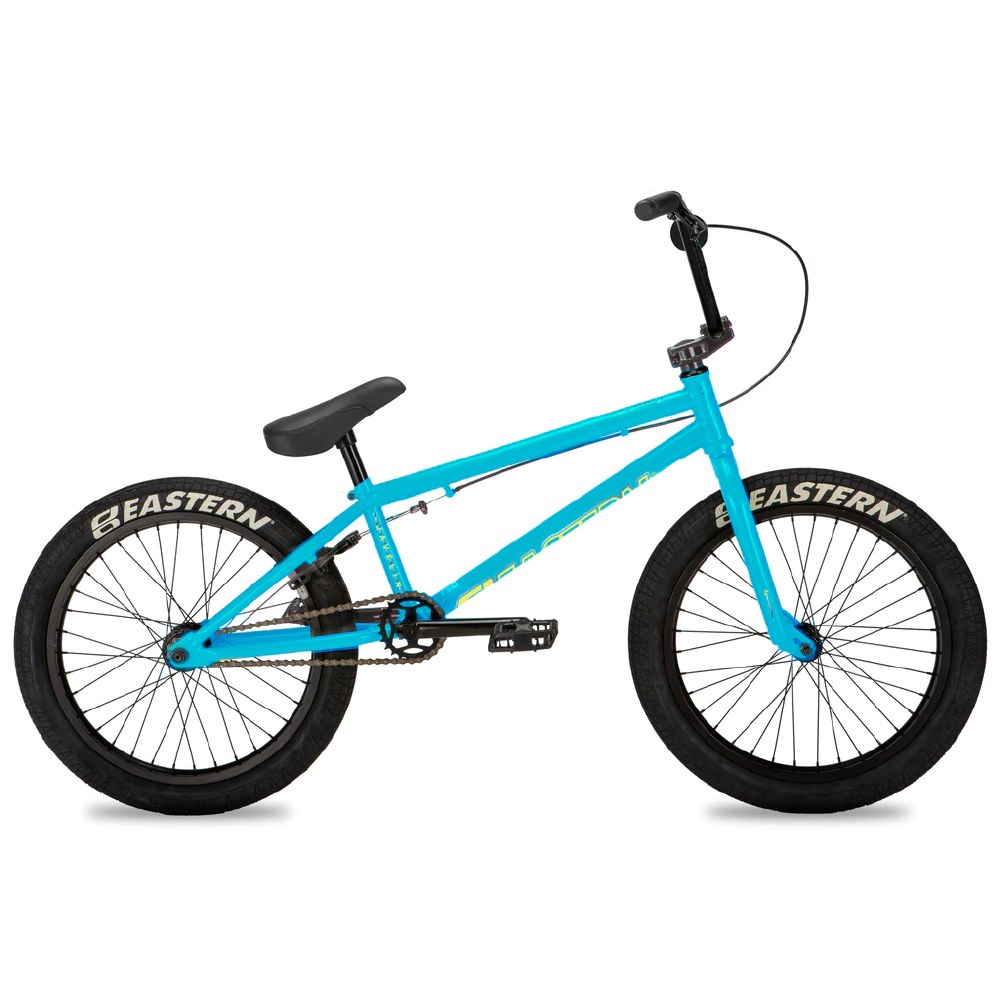

2022 EASTERN JAVELIN

The Eastern Javelin is a beginners bike with a little extra. The Javelin features a rugged steel frame w/ chromo down tube, sealed front & rear hubs for a long-lasting smooth ride. Sealed bearing integrated headset, a 3-piece chromoly cranks, Eastern grips, pedals, and sprocket.

FRAME: Hi-Tensile Steel with Chromoly Down Tube, Mid BB, Internal Headset
Top Tube Size: 20.5″
BB: Mid
Headtube: Integrated
Chainstay Length: 13.38″
Clamp: Integrated with Frame
BARS: Hi-Ten 8.5″Upsweep/Backsweep 12⁰/1⁰
FORK: Chromoly Steerer Tube with Hi-tensile steel Tapered legs, 3/8″ dropouts
Fork Rake: 28mm
HEADSET: Integrated 45°X45° Sealed Cartridge Bearing
STEM: Forged Alloy Top Load Stem
GRIP: Eastern Riblet Grips
CRANK: 3-Piece, Tubular Heat-Treated Chromoly, Bolt for Sprocket, Pinch Bolt with 8-Splined Spindle, 170mm 28.6mm Round Arm
BOTTOM BRACKET: Sealed Bearing Mid
CHAINWHEEL: Eastern Phorcys, Cold Hard Steel, 25T
CHAIN: KMC Z510 1/2 x 1/8
PEDAL: Eastern Atom Plastic Pedal with 9/16″ Axle
FRONT BRAKE: N/A
FRONT LEVER: N/A
REAR BRAKE: U-Brake, Forged Alloy, Wide Body, Clear Brake Pads
REAR LEVER: Forged Alloy Lever
BRAKE CABLE: [S] LINEAR
SADDLE: Medium Width Seat/ Post Combo
POST: Comes with seat
FRONT HUB: Sealed Bearings, Forged Alloy Shell, Drilled for 36 Spokes, 3/8″ Chromoly Axle
REAR HUB: Sealed Bearings, Forged Alloy Shell Drilled for 36 Spokes, 14mm Chromoly Axle
FREEWHEEL: 9 Tooth Driver with Hub
FRONT RIM: Alloy, Double Wall, Drilled for 36 Spokes
REAR RIM: Alloy, Double Wall, Drilled for 36 Spokes
SPOKES: 14 Gauge with Brass Nipples
FRONT TIRE: Eastern OEM 20 x 2.40
REAR TIRE: Eastern OEM 20 x 2.40
PEG: none
*Bikes are designed for riders 13 years old and up.
*Specs & pricing Subject to Change
