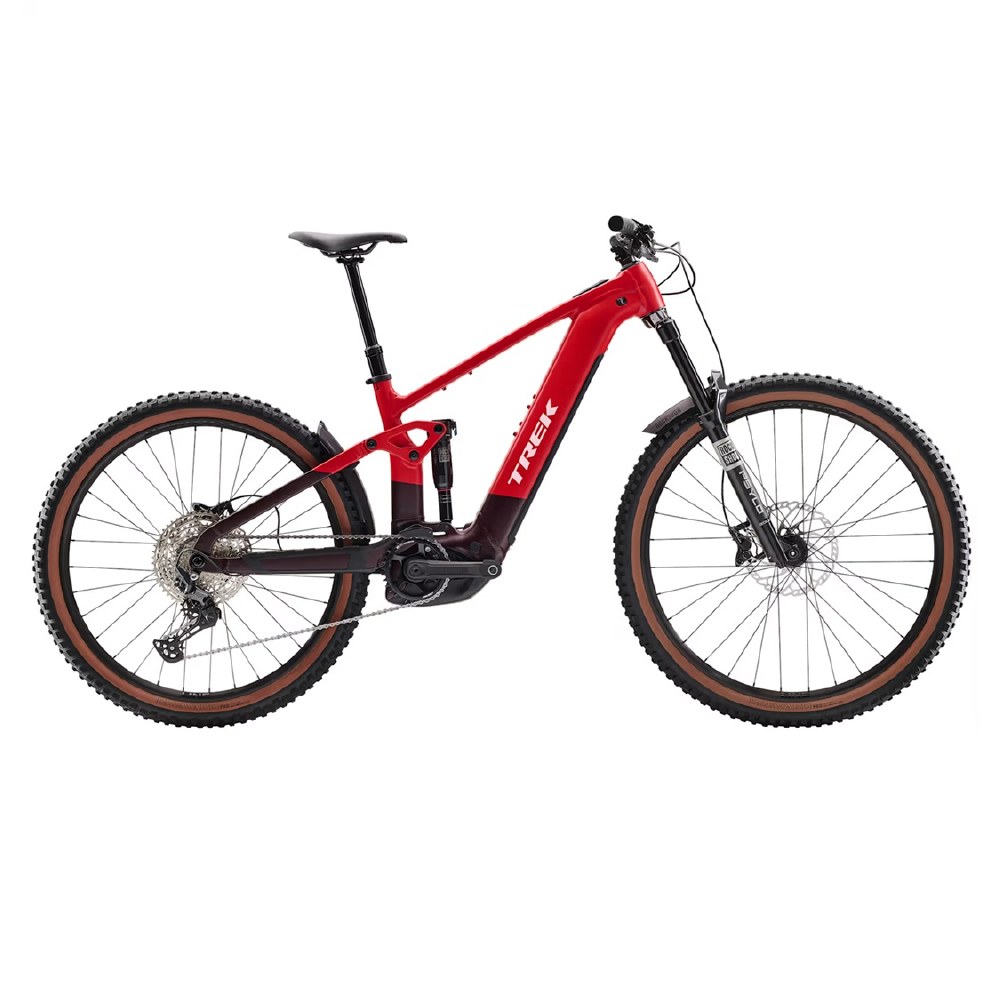

TREK RAIL+ 5

Rail+ 5 is an alloy enduro e-bike that delivers huge value for big adventures. Its rugged Alpha Platinum Aluminum frame partners with a RockShox Deluxe Select+ RT shock and Psylo Gold RC fork (160mm rear/front) to charge through the roughest terrain on the mountain. A Shimano Deore 12-speed drivetrain and 4-piston MT4100 brakes deliver clean shifting and brake modulation that doesn't break the bank. It's topped with a TranzX dropper post and tubeless-ready Bontrager Line TLR 30 wheels for charging into anything.



SPECIFICATIONS

Frameset
Frame: Alpha Platinum Aluminum, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Control Freak internal routing, Motor Armor, Boost148, 12mm thru axle, 160mm travel
Fork: RockShox Psylo Gold RC, DebonAir spring, Isolator RC damper, tapered steerer, 44mm offset, Boost 110, 15mm Maxle Stealth, 160mm travel
Shock: RockShox Deluxe Select+ RT, 205mm x 65mm

Wheels
Hub front: Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
Hub rear: Bontrager alloy, sealed bearing, 6-bolt, Shimano Micro Spline freehub, Boost148, 12mm thru axle
Skewer rear: Bontrager Switch thru axle, removable lever
Rim: Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve
Tire:
Size: S, M, L, XL Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50"
Size: S, M, L, XL Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40''
Size: M, L, XL Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50"
Size: M, L, XL Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40''
Tire part: Bontrager TLR sealant, 180 ml/6 oz
Rim strip: Bontrager TLR
Max tire size: Frame: 27.5x2.60", Fork: See manufacturer

E-system
Battery: Bosch PowerTube 800Wh, smart system
Charger: Bosch standard 2A, 110V, smart system
Controller: Bosch System Controller BRC3100, smart system
Motor: Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)
E-bike Classification: Class 1

Drivetrain
Shifter: Shimano Deore M6100, 12 speed
Rear derailleur: Shimano Deore M6100, long cage
Crank arm: E*thirteen E*spec Plus, 160mm length
Cassette: Shimano Deore M6100, 10-51, 12 speed
Chain: Shimano Deore M6100, 12 speed
Pedal: VP-536 nylon platform
Max chainring size: 1x: 36T

Components
Saddle: Bontrager Verse P3, steel rails
Seatpost:
Size: S TranzX JD-YSI34, 100mm travel, internal routing, 34.9mm
Size: M, L, XL TranzX JD-YSI34, 170mm travel, internal routing, 34.9mm
Handlebar: Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Grips: Bontrager XR Trail Comp, nylon lock-on
Stem: Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
Headset: Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible
Brake: Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper
Brake rotor: Shimano RT66, 6-bolt, 203mm
Rotor size: Max brake rotor sizes - Frame: 220mm, Fork: see fork manufacturer

Accessories
Fender: Trek custom fender

Weight
Weight: M - 25.28 kg / 55.74 lbs (with TLR sealant, no tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
