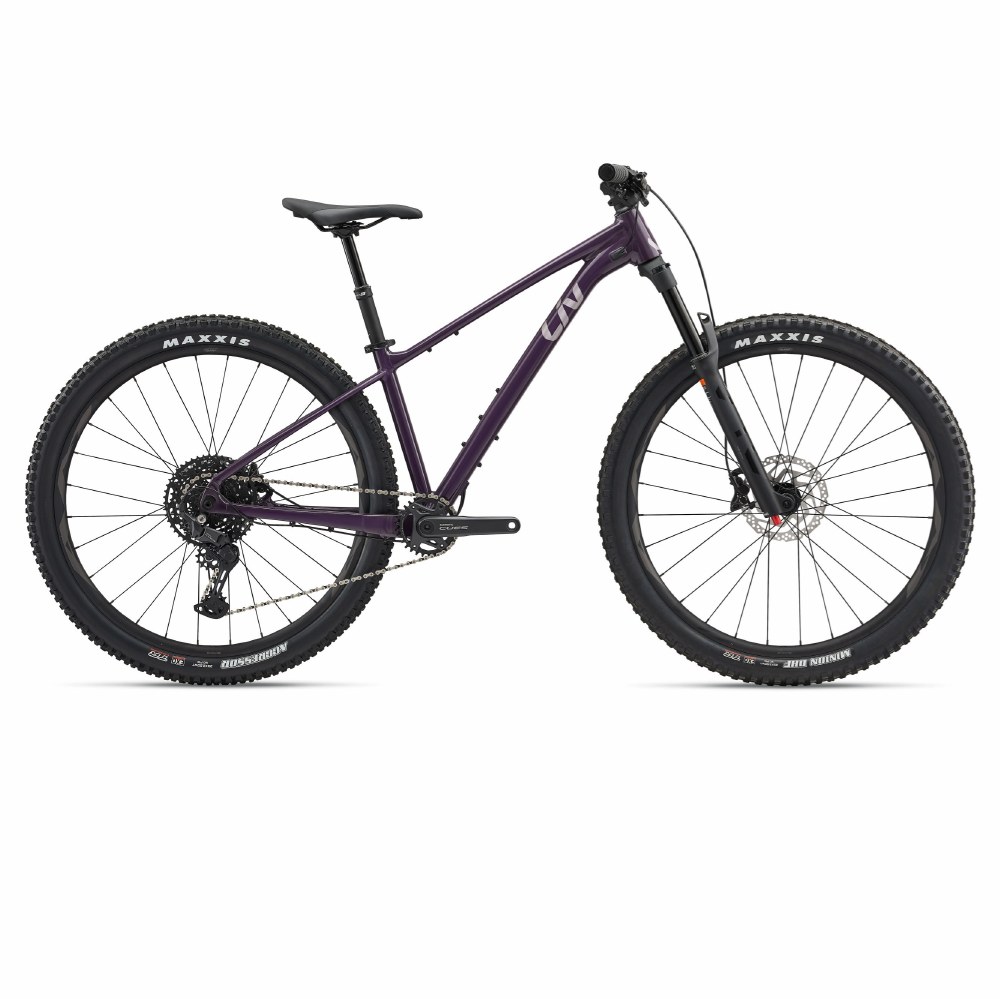

LIV LURRA

Tech & Features

ALUXX Aluminum Technology
This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.

OverDrive
Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

PowerCore
A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeterwide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.

Tubeless System
Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.

Specifications

Frame: ALUXX SL-grade aluminum, 12x148 thru-axle
Fork: Giant STL 34, RCL, 140mm, 44mm offset, Boost 15x110
Shock: N/A
Handlebar: Giant Contact TR35, 20mm rise, alloy 27.5": XS: 760mm, S: 760mm 29": S: 760mm, M: 760mm, L: 780mm
Grips: Liv Sole-O
Stem: Giant Contact SL 35 27.5": XS: 40mm, S: 40mm 29": S: 40mm, M: 50mm, L: 50mm
Seatpost: Giant Contact Switch AT dropper, remote27.5":XS: 70-100mm travel / 30.9 x 315mmS: 70-100mm travel / 30.9 x 315mm29":S: 70-100mm travel / 30.9 x 315mmM: 110-140mm travel / 30.9 x 395mmL: 110-140mm travel / 30.9 x 395mm
Saddle: Liv Sylvia
Shifters: Shimano Cues SL-6000, 1x10
Front Derailleur: N/A
Rear Derailleur: Shimano CuesRD-U6000, Shadow+
Brakes: Shimano BR-MT420, hydraulic, Shimano RT-26 rotors [F]180mm, [R]180mm
Brake Levers: Shimano MT-401
Cassette: Shimano CUES, CS-LG300, 11x48
Chain: KMC X-11
Crankset: Shimano CUES FC-U6000, 30t 27.5": XS: 165mm, S: 170mm 29": S: 170mm, M: 170mm, L: 170mm
Bottom Bracket: Shimano, threaded
Rims: 27.5": Giant AM 27.5, tubeless ready, sleeve-joint rim, 30mm inner width 29": Giant AM 29, tubeless ready, sleeve-joint rim, 30mm inner width
Hubs: alloy, sealed
Spokes: Sapim
Tires: (F) DHF 27.5x2.5" (R) Maxxis Dissector 27,5x2.4
Extras: 27.5": tubeless prepared, max tire size 2.6", max chainring size 32t 29": tubeless prepared, max tire size 2.5", max chainring size 32t
Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
