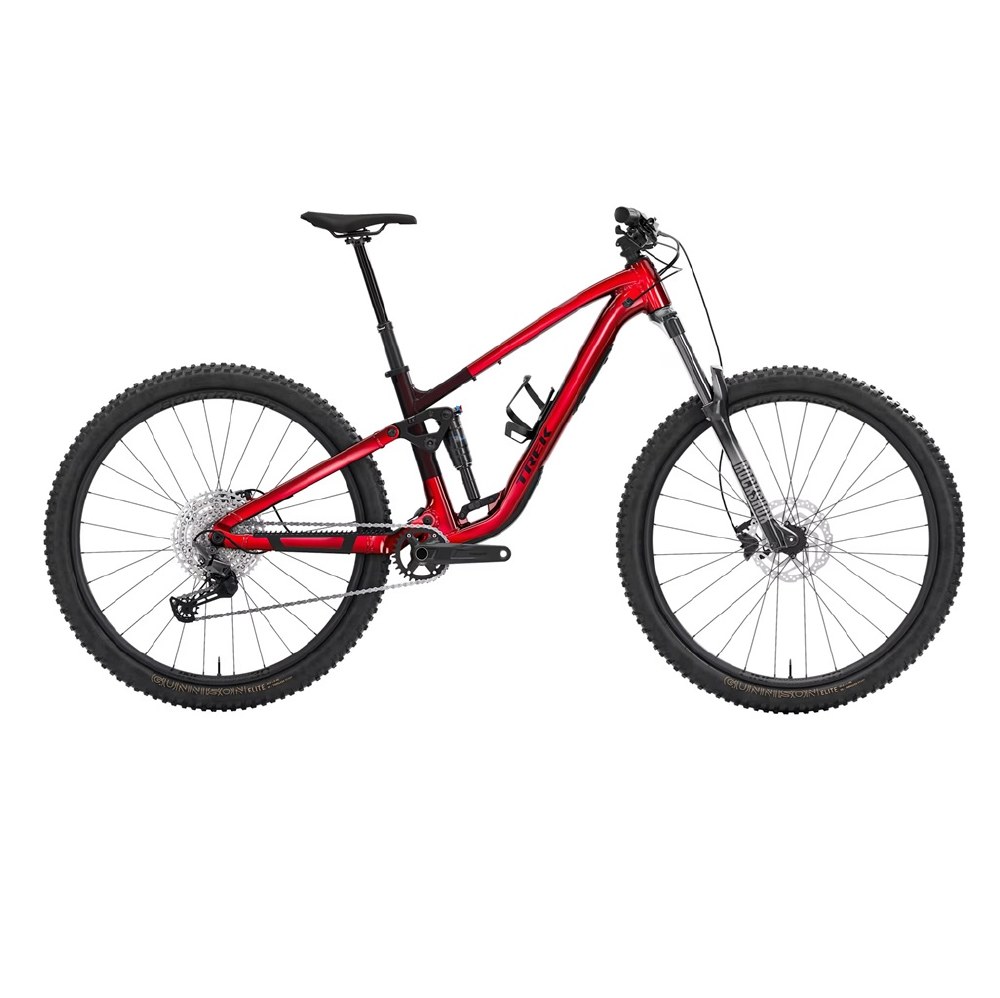

TREK FUEL EX 5 GEN 7

Fuel EX 5 is an aluminum trail bike built for total versatility wherever you ride. It comes with a RockShox Recon Silver fork and X-Fusion Pro 2 rear shock, tubeless-ready wheels, a 12-speed Shimano Deore drivetrain, and a TranzX dropper post, so you're ready for anything.



Specifications

Frameset
Frame: Alpha NEXT Platinum aluminum, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm
Fork: Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 offset, Boost110, 15mm Maxle Stealth, 150mm travel
Shock: X-Fusion Pro 2, 2-position damper, 205mm x 60mm

Wheels
Hub front: Shimano TC500 alloy, centerlock, 110x15mm thru axle
Hub rear: Shimano TC500 alloy, centerlock, 148x12mm thru axle
Skewer rear: Bontrager Switch thru axle, removable lever
Rim:
Size: S, M, L, XL - Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve
Size: S, M, L, XL - Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve
Tire:
Size: S - Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40''
Size: S, M, L, XL - Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40''
Tire part: Bontrager TLR sealant, 180 ml/6 oz
Rim strip: Bontrager TLR
Max tire size: Frame: 29x2.50", Fork: See manufacturer

Drivetrain
Shifter: Shimano Deore M6100, 12 speed
Rear derailleur: Shimano Deore M6100, long cage
Crank: Shimano MT512, 30T ring, 55mm chainline, 170mm length
Bottom bracket: Shimano BB-MT501 BSA
Cassette: Shimano Deore M6100, 10-51, 12 speed
Chain: Shimano Deore M6100, 12 speed
Max chainring size: 1x: 34T round, 32T oval, min 30T, 32T oval

Components
Saddle: Bontrager Verse Short, stainless steel rails
Seatpost:
Size: S - TranzX JD-YSI34, 150mm travel, internal routing, 34.9mm
Size: M, L, XL - TranzX JD-YSI34, 170mm travel, internal routing, 34.9mm
Handlebar: Bontrager Comp, alloy, 31.8mm, 40mm rise, 780mm width
Grips: Trek Line Comp, nylon lock-on
Stem: Bontrager Comp, 31.8mm, 7 degree, 35mm length
Headset: FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown
Brake: Shimano hydraulic disc, MT201 lever, MT200 caliper
Brake rotor: Shimano RT10, CenterLock, 180 mm
Rotor size: Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer

Weight
Weight: M - 17.02 kg / 37.53 lbs (with TLR sealant, no tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
