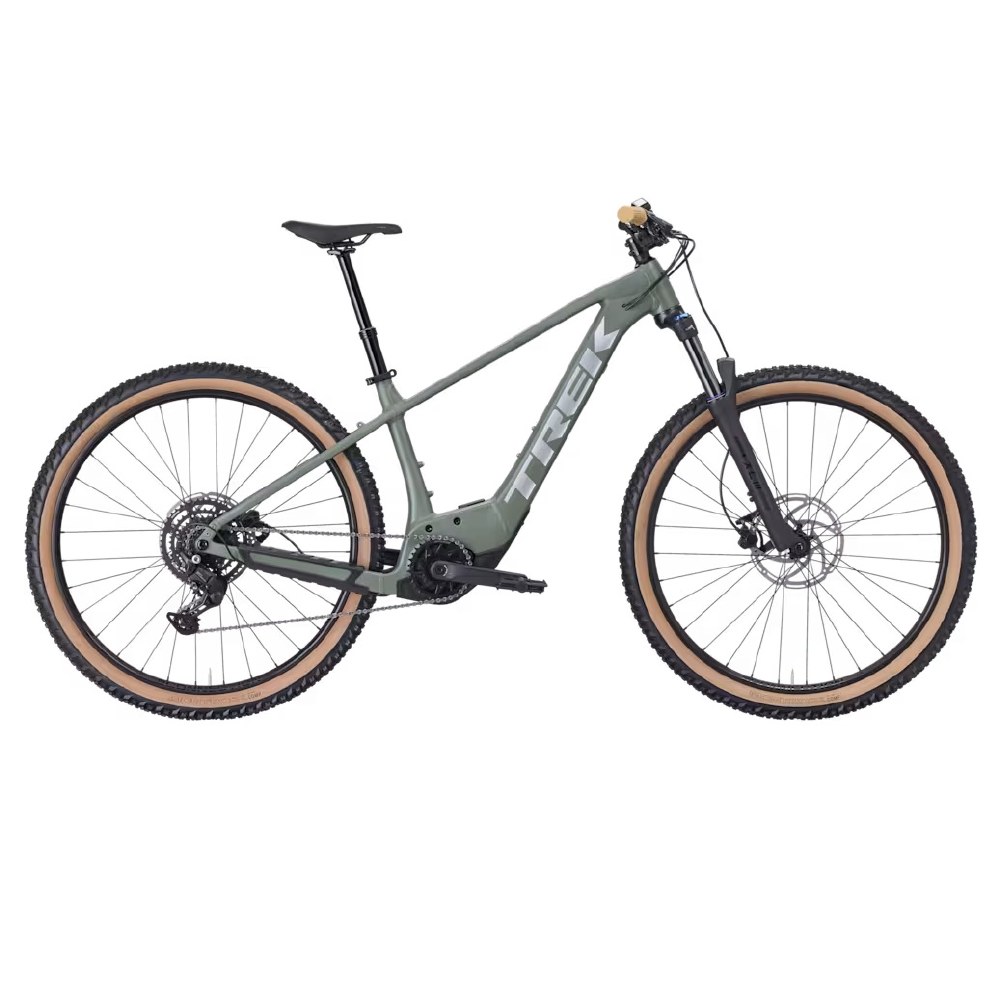

TREK MARLIN+ 6

Marlin+ 6 is an electric mountain bike that's ready to power up your trail rides without breaking the bank. It's equipped with the same fun and confident geometry as the non-electric Marlin, with the added boost of Bosch's Active Line Plus drive system. A 120mm suspension fork soaks up rocks, roots, and potholes on your ride, while 9-speed Shimano CUES is durable and reliable for wherever you roll.



SPECIFICATIONS

Framset
Frame:
Size: XS Alpha Gold Aluminum, curved top tube, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle
Size: S , M , L , XL Alpha Gold Aluminum, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle
Fork:
Size: XS SR Suntour XCM 34, air spring, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 100mm travel
Size: S , M , L , XL SR Suntour XCM 34, air spring, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 120mm travel

Wheels
Hub front: Shimano TC500 alloy, centerlock, 110x15mm thru axle
Hub rear: Shimano TC500 alloy, centerlock, 148x12mm thru axle
Skewer rear: Bontrager Switch thru axle, removable lever
Rim: Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
Tire:
Size: XS , S Bontrager Montrose comp, wire bead, 30 tpi, 27.5x2.40"
Size: XS , S Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.4''
Size: M , L , XL Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.4''
Size: M , L , XL Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.40"
Max tire size: Frame: 29x2.60" (XS: 27.6x2.60"), Fork: See manufacturer

E-system
Battery: Bosch CompactTube 400Wh
Charger: Bosch standard 2A, 110V, smart system
Computer: Bosch Purion 200
Motor: Bosch Active Line Plus, 50 Nm
E-bike Classification: Class 1

Drivetrain
Shifter: Shimano U4000, 9 speed
Rear derailleur: Shimano CUES U4000
Crank: FSA CK-220, 165mm length
Chain ring: FSA, 32T, steel
Cassette: Shimano LINKGLIDE LG300, 11-46, 9 speed
Chain: Shimano LG500
Pedal: Nylon platform
Max chainring size: 1x: 36T, min 32T

Components
Saddle: Bontrager Verse P3, steel rails
Seatpost:
Size: XS , S TranzX JD-YSI34, 100mm travel, internal routing, 31.6mm, 350mm length
Size: M , L TranzX JD-YSI34, 150mm travel, internal routing, 31.6mm, 456mm length
Size: XL TranzX JD-YSI34, 170mm travel, internal routing, 31.6mm, 500mm length
Handlebar:
Size: XS , S Bontrager alloy, 31.8mm, 15mm rise, 720mm width
Size: M , L , XL Bontrager Comp, alloy, 31.8mm, 40mm rise, 780mm width
Grips: Trek Line Comp, nylon lock-on
Stem:
Size: XS , S Bontrager Comp, 31.8mm, 7 degree, 35mm length
Size: M , L Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
Size: XL Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
Headset: Semi-integrated, loose ball bearing, 1-1/8" top, 1.5" bottom
Brake rotor: Tektro, centerlock, 203mm
Brake Set: Tektro HD-M275 hydraulic disc
Rotor size: Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer

Weight
Weight: M - 22.90 kg / 50.49 lbs (with tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
