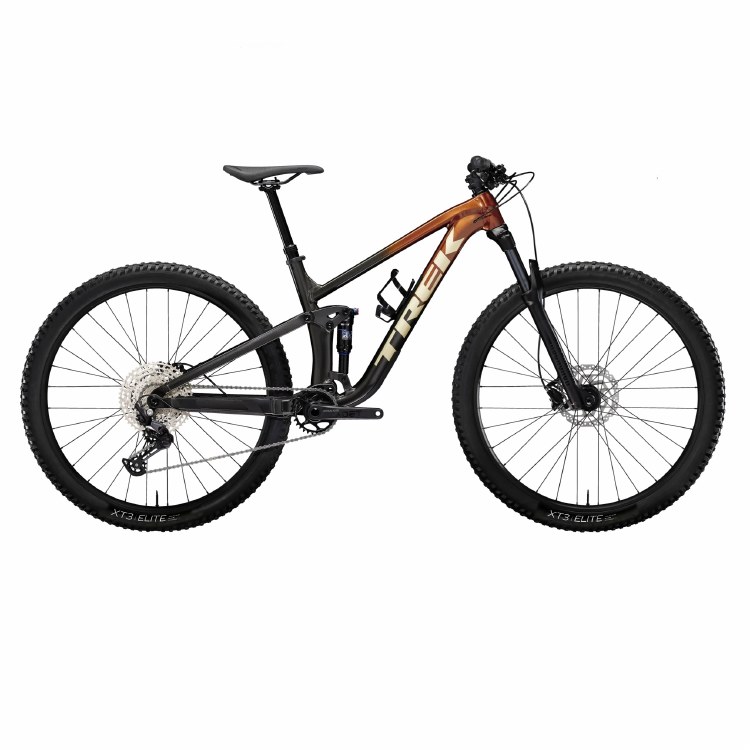

TREK TOP FUEL 5

Top Fuel 5 is a full suspension mountain bike that’s equal parts efficient and capable. It soaks up rough, rugged descents but still flies like a rocket up hills and on flat stretches. The light and sturdy alloy frame is built with parts picked for performance and value, making this bike perfect for your first full suspension trail bike.

It's right for you if...
You’ve fallen in love with mountain biking, and are ready for the confidence, traction, and capability of a full suspension bike. You’re looking for a rugged frame and solid parts spec that pack performance without breaking the bank.

The tech you get
A lightweight aluminum frame with internal storage, 120mm RockShox Recon fork, 120mm of rear travel with an X-Fusion Pro 2 shock and a wide-range 1x12 Shimano Deore drivetrain. Plus, tubeless ready rims, hydraulic disc brakes, and a dropper post.

The final word
A solid full suspension bike at a wallet-friendly price. The best-value bike in the Top Fuel lineup is made for having a blast going fast on just about any trail.

Why you'll love it
- This bike’s killer suspension setup is both efficient and ready to party
- Mino Link lets you make small adjustments to your geometry quickly and easily, even mid-ride
- A sleek internal storage compartment gives you a versatile spot to stow tools and gear
- New, removable Knock Block has a bigger steering angle to keep cables and hoses safe without sacrificing turning radius



SPECIFICATIONS

Frameset
Frame: Alpha Platinum Aluminium, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120 mm travel
Fork: RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 120mm travel
Shock: X-Fusion Pro 2, 2-position damper, 185mm x 50mm
Max compatible fork travel 130mm (541mm axle-to-crown)

Wheels
Hub front: Bontrager alloy, 6-bolt, Boost110, 15 mm thru-axle
Hub rear: Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle
Skewer rear: Bontrager Switch thru axle, removable lever
Rim: Alex MD35, tubeless compatible, 32-hole, 35mm width, Presta valve
Tire:
Size: S, M, ML, L, XL, XXL - Bontrager XT3 Elite, wire bead, 60 tpi, 29x2.40"
Size: S, M, ML, L, XL, XXL - Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29x2.40"
Tire part:
Size: S, M, ML, L, XL, XXL - Bontrager TLR sealant, 180 ml/6 oz
Size: S, M, ML, L, XL, XXL - Bontrager TLR valve, 50mm
Rim strip: Bontrager TLR
Max tire size: Frame: 29x2.50", Fork: See manufacturer

Drivetrain
Shifter: Shimano Deore M6100, 12 speed
Rear derailleur: Shimano Deore M6100, long cage
Crank:
Size: S, M, ML, L - Shimano MT512, 30T ring, 55mm chainline, 170mm length
Size: XL, XXL - Shimano MT512, 30T ring, 55mm chainline, 175mm length
Bottom bracket:
Size: S, M, ML, L, XL, XXL - Shimano BB-MT501 BSA
Size: S, M, ML, L, XL, XXL - Shimano SM-BB52, 73mm, threaded external bearing
Cassette: Shimano Deore M6100, 10-51, 12 speed
Chain: Shimano Deore M6100, 12 speed
Max chainring size: 1x: 36T round, 34T oval, min 28T

Components
Saddle: Bontrager Arvada, steel rails, 138 mm width
Seatpost:
Size: S - TranzX JD-YSI-22PLQ, 100mm travel, internal routing, 34.9mm, 346mm length
Size: M, ML - TranzX JD-YSI-22PLQ, 150mm travel, internal routing, 34.9mm, 454mm length
Size: L, XL, XXL - TranzX JD-YSI-22PLQ, 170mm travel, internal routing, 34.9mm, 497mm length
Handlebar:
Size: S, M, ML, L, XL, XXL - Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Size: S, M, ML, L, XL, XXL - Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width
Grips: Bontrager XR Trail Comp, nylon lock-on
Stem: Bontrager Rhythm Comp, 31.8mm, 0 degree, 50mm length
Headset: Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8" top, 1.5" bottom
Brake: Shimano MT200 hydraulic disc
Brake rotor:
Size: S, M, ML, L, XL, XXL - Shimano RT26, 6-bolt,180 mm
Size: S, M, ML, L, XL, XXL - Shimano RT26, 6-bolt,160 mm
Brake Set: Shimano MT200 hydraulic disc
Rotor size: Max brake rotor sizes - Frame: 180mm, Fork: see fork manufacturer

Accessories
Bag: Bontrager BITS Internal Frame Storage Bag

Weight
Weight: M - 15.29 kg / 33.71 lbs
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
